Betaling:
T/T, West UnionPrijs:
$19,800/28,500Productoorsprong:
China CEECVerzendhaven:
Shanghai seaportDoorlooptijd:

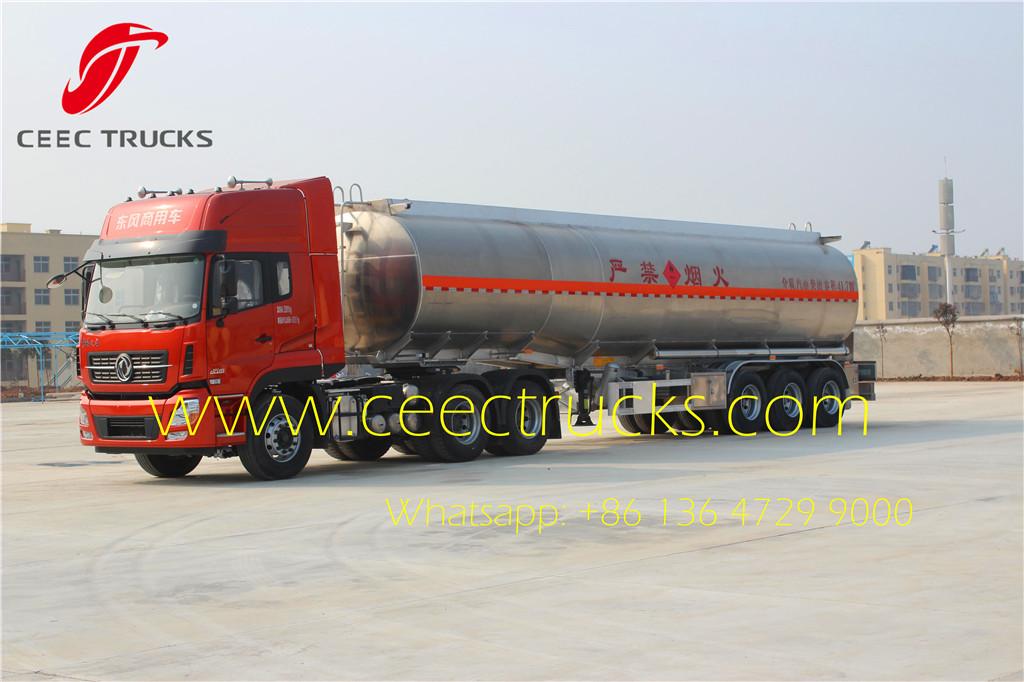

15 DaysBest Stainless Steel 40CBM Fuel Tanker Semitrailer

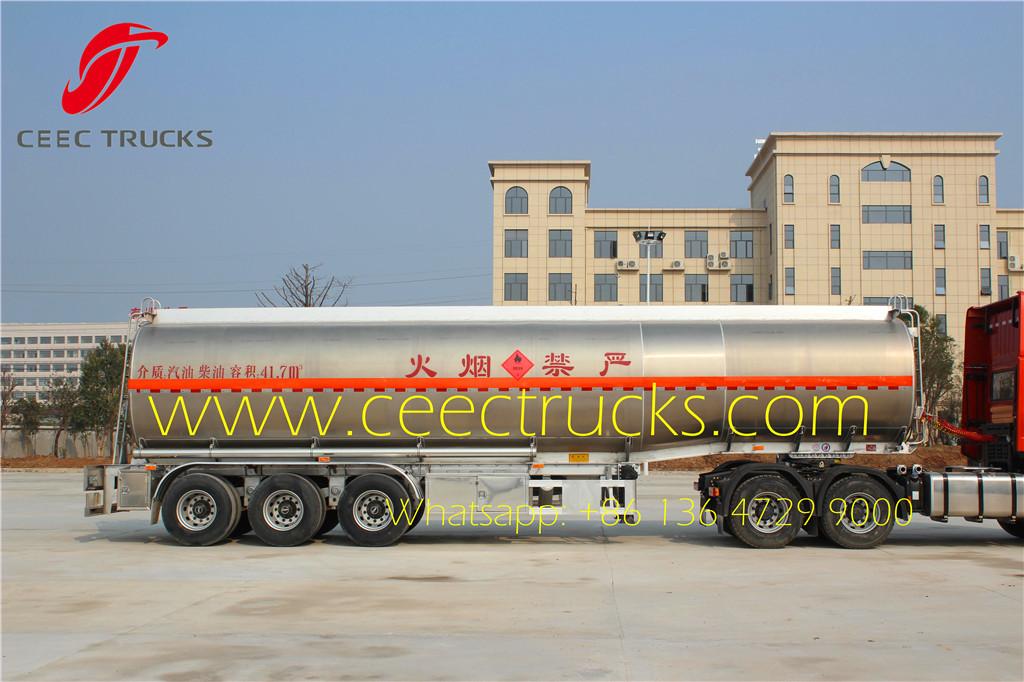

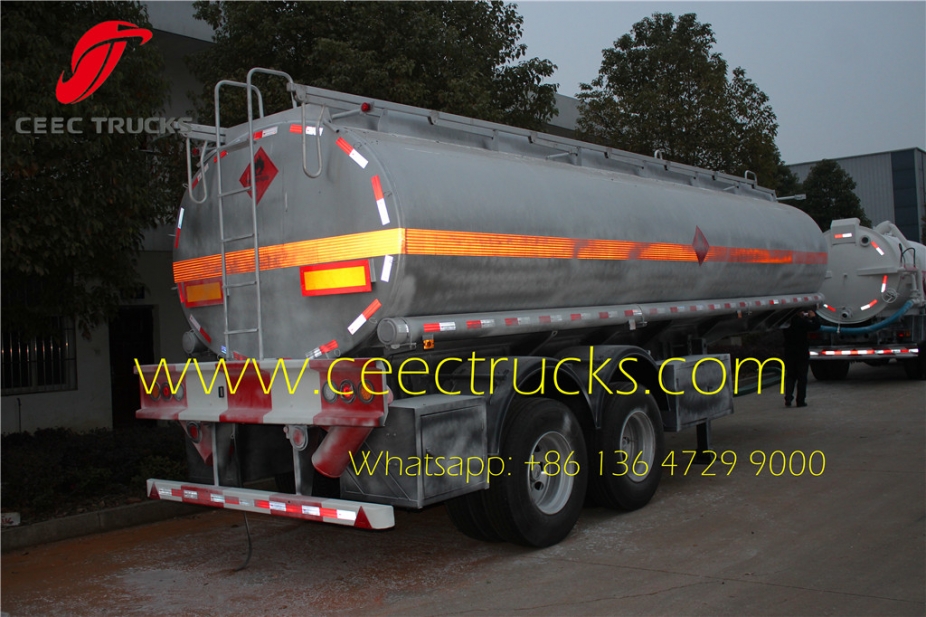

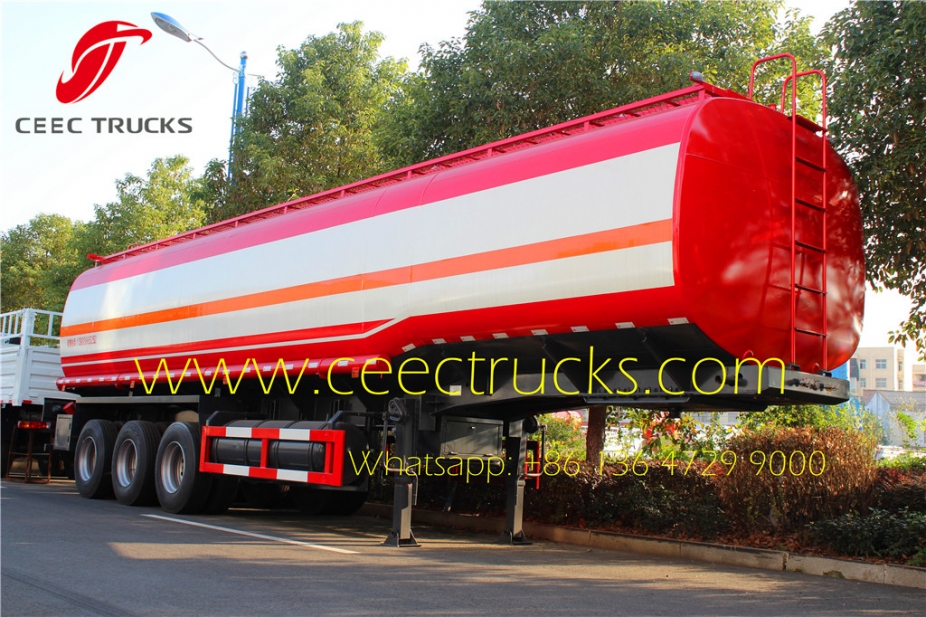

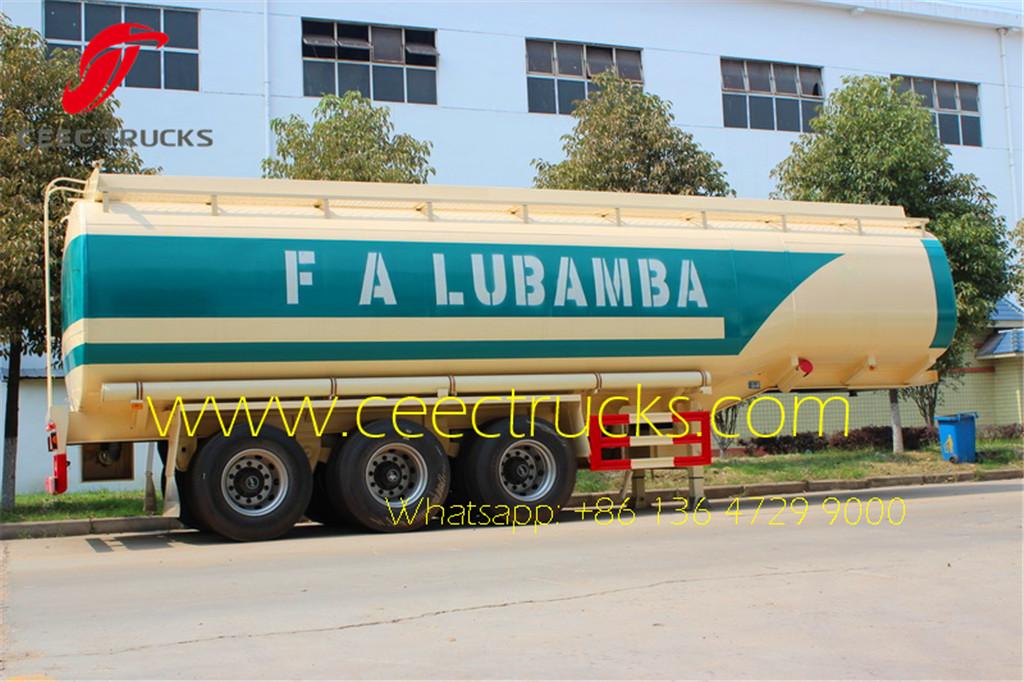

China best fuel tanker semitrailer, also can be called diesel tanker semitrailer, oil tanker semitrailer, gasoline tanker semitrailer, stainless steel tanker trailer, aluminum tanker trailer, etc. which are mainly used to transport all kinds of inflammable liquids, such as diesel, oil, gasoline. The 40 CBM stainless steel fuel tanker trailer export to United Arab Emirates, and will be used for crude oil transportation in Oil Field.
Advanced features for CEEC TRUCKS produced oil tanker trailers:
★ International standard stainless steel material, with one compartment and multiple compartment for optional

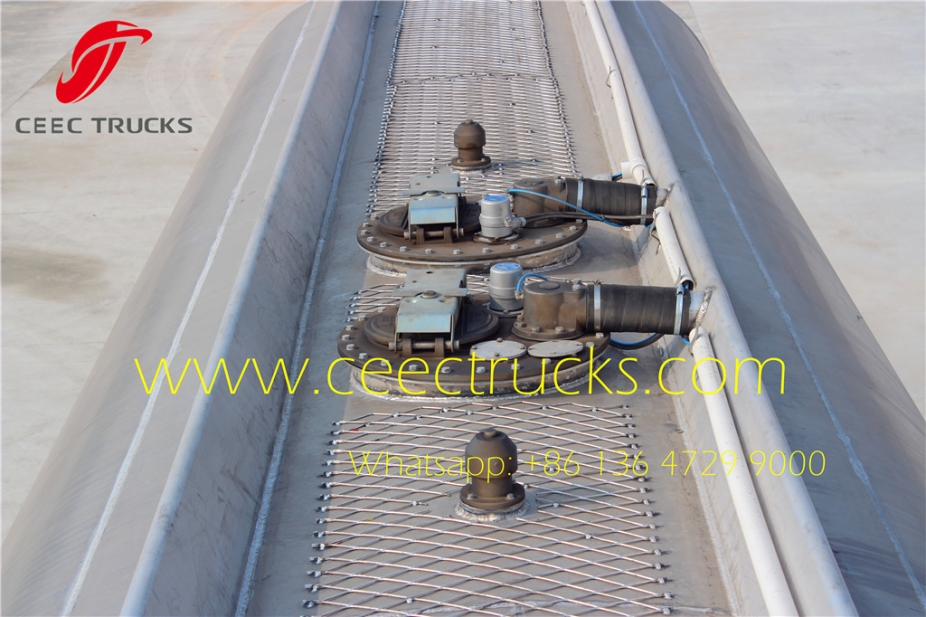

★ Installed Euro standard Manhole, Submarrine Emergency Valves, and Emergency Stop Button for safety
★ Axle style: BPW and FUWA brand 13T & 16T for optional

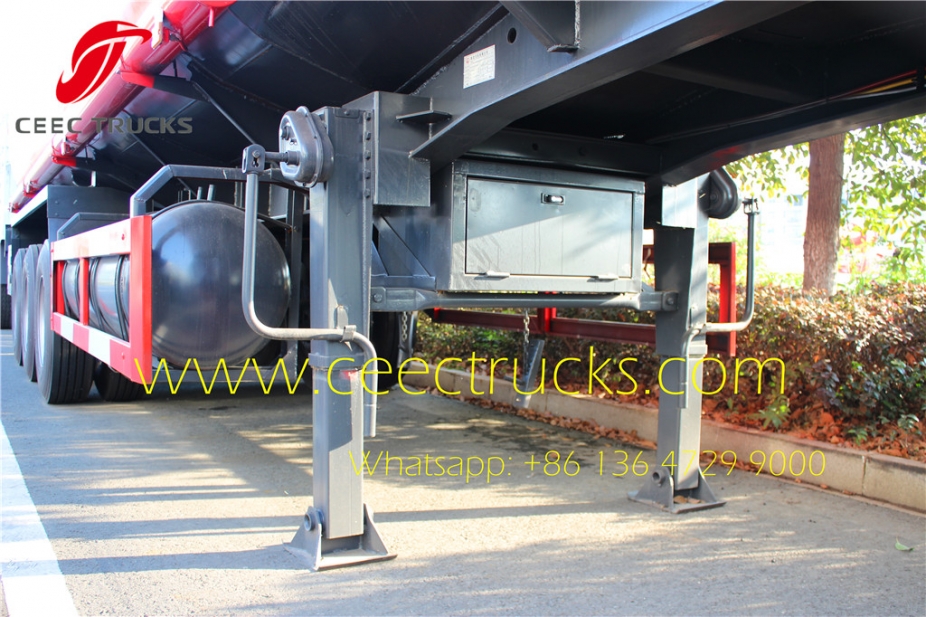

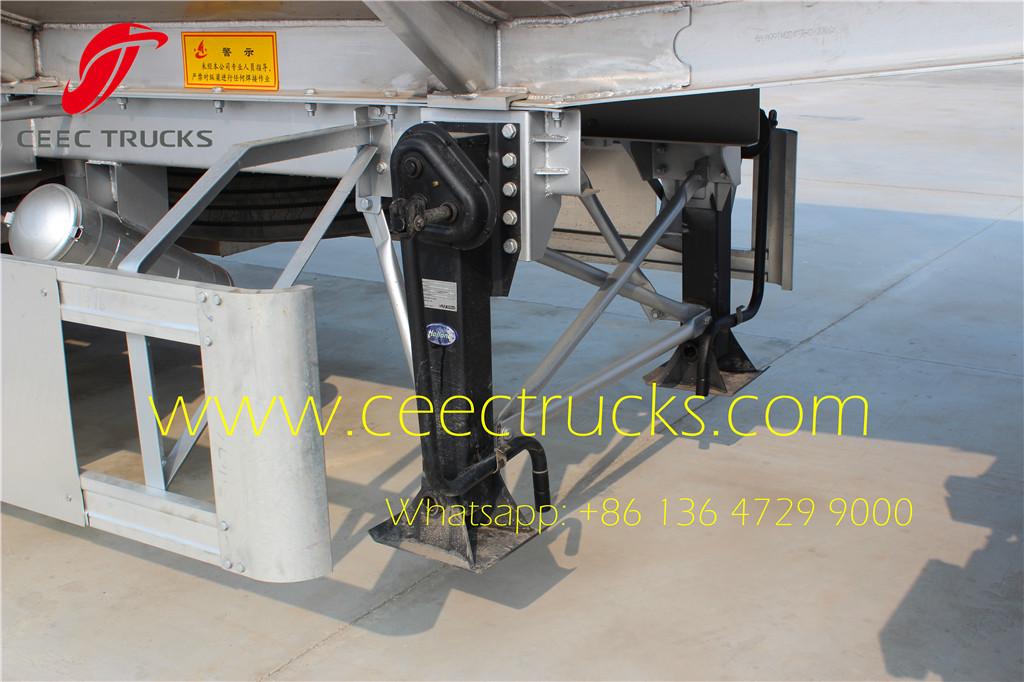

★ Landing Gear: JOST and HOLLAND brand, or standard

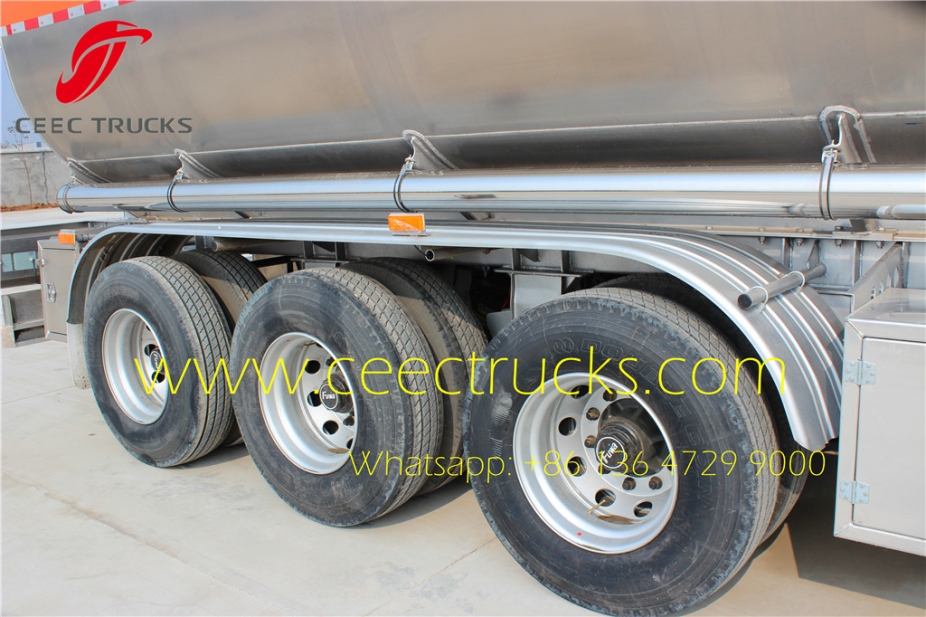

★ 12 units 11.00R20 model tire as standard equipment; 6 units 11.00R22.5 with Aluminum rim for light weight
★ 12 months free fast moving spare parts
★ Semitrailer export CKD and SKD expert

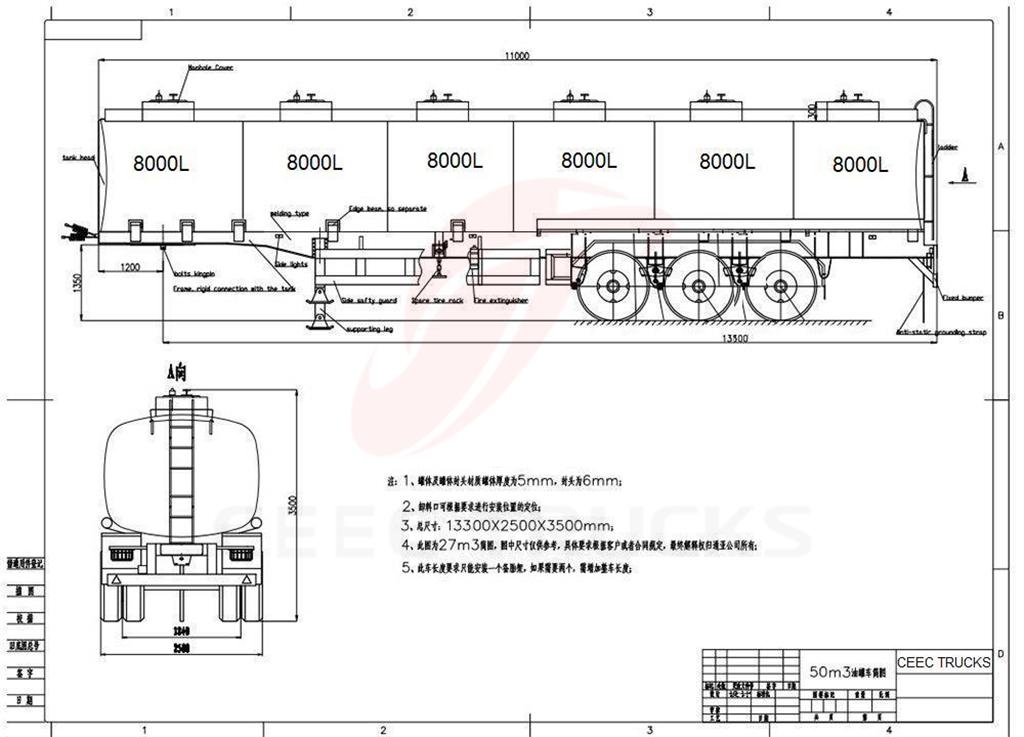

| Tank Body | |
| Shape | Optional ( Round or Square) |
| Dimension | 12000mm*2490mm*3990mm( Exact size depends on the final design) |
| Tare weight | About 8000KGS-12800KGS |
| Total Volume（m3） | 25m3-60 m3 |
| Tanker Body Material | 5mm or6mm/ Q235 carbon steel |
| End Plate | 5mm or6mm/Q235 carbon steel |
| Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, ∮500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis | |
| Main Beams | Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST (C200T）or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or100mm*12mm*12 /without |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; 2 pieces of45Lair tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |

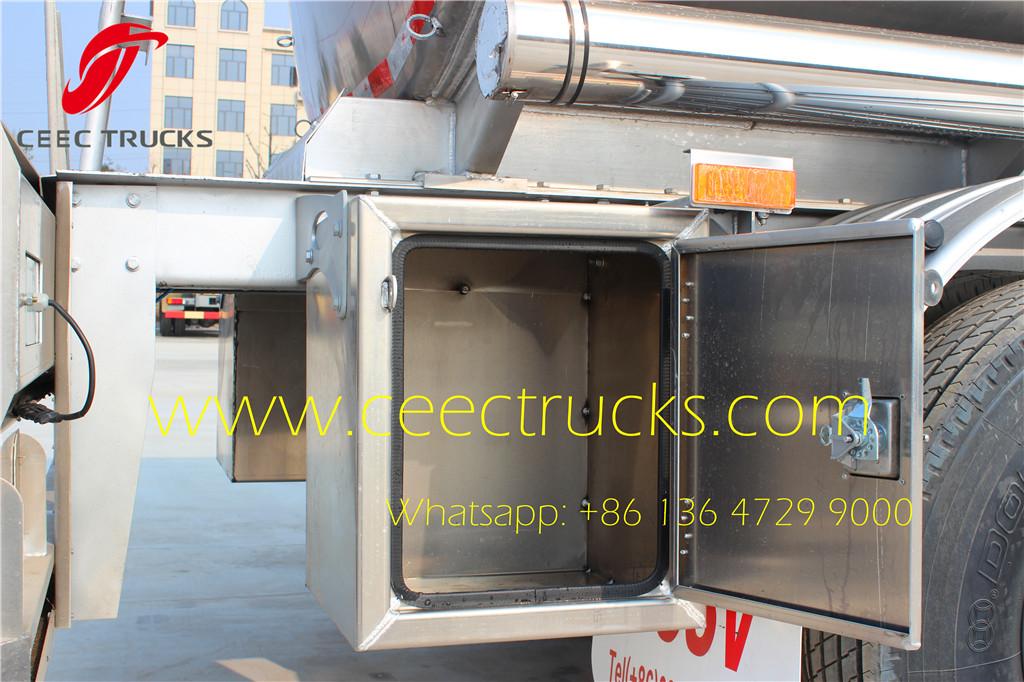

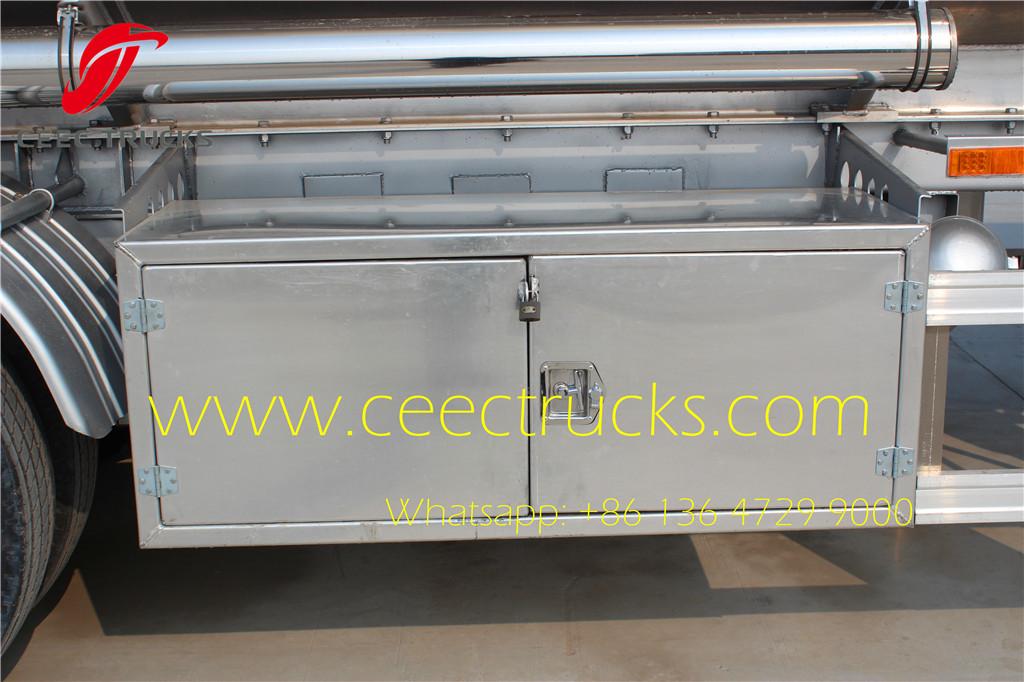

| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
China Best Semitrailer on sale
|
|
|
|
|
| |
| Axle | |||||
| Landing Gear | |||||
| Tire | |||||
| Payload | |||||
| Drive Type |
Other beiben trucks display

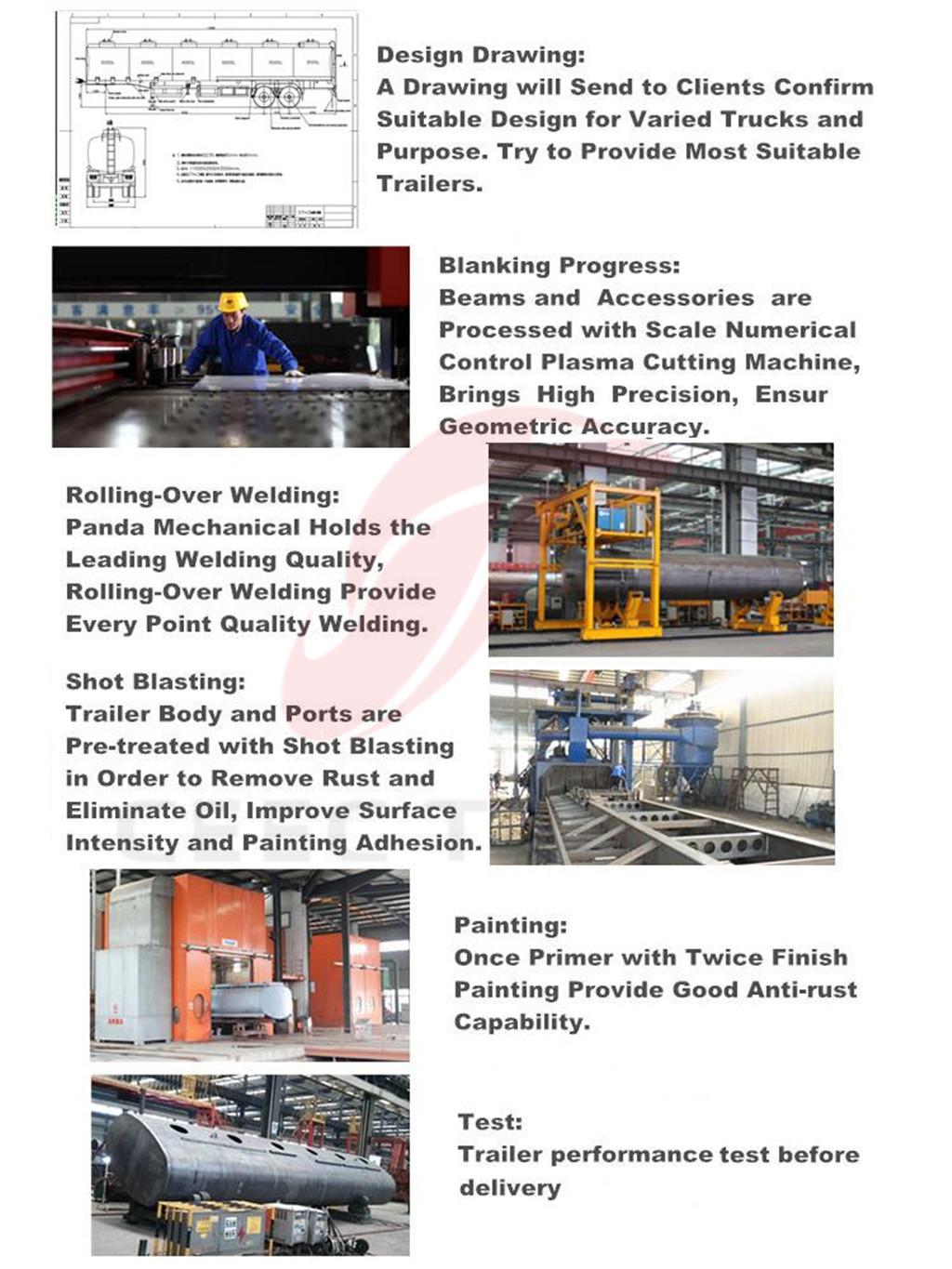

Why customer choose CEEC TRUCKS produced 40 CBM fuel tanker semitrailer?
