China beiben 4*4 off road truck chassis, benz technoloy 7 T front axle, military benz 16 T double reducer axle, famous weichai 300 hp diesel engine, fast 9 shift transmission, XCMG brand 5T boom crane export Fiji
Betaling:
T/T, West UnionPrijs:
$42,000/58,000Productoorsprong:
China CEECVerzendhaven:
Shanghai SeaportDoorlooptijd:
30 DaysBeiben 4*4 Military Truck Mounted Crane supplier

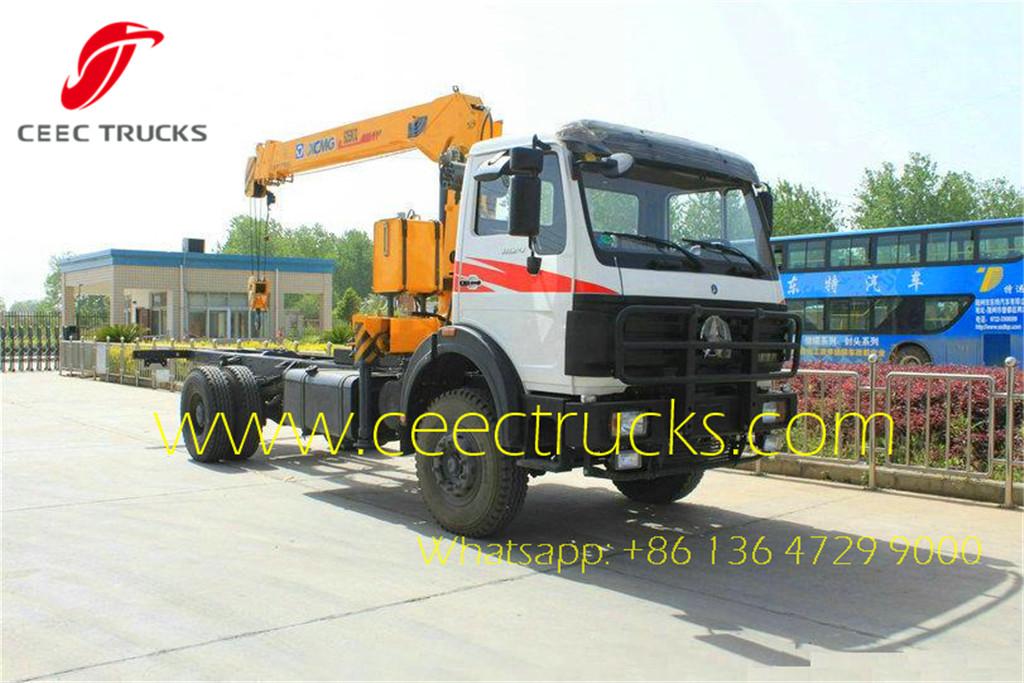

Beiben offroad trucks 5 Ton mounte crane , also call as beiben 4*4 crane trucks, north benz trucks mounted crane. As the most professinal beiben crane trucks manufacturer in china, we can produce the beiben military 5 T trucks mounted crane, beiben offroad 6.3 T truck mounted crane, beiben offroad 8 T trucks mounted crane.
The north benz trucks mounted can be on north benz 4*4 trucks chassis and 6*6 trucks chassis. Customer can choose XCMG, UNIC, HIAB crane system to install on these north benz trucks chassis
Why customer choose Beiben 4*4 military truck mounted Crane from us ?
1． CEEC TRUCKS is the manufacturer of Beiben 5 T ton truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc.
2． Advanced development & analysis meansmake sure design is very reliable.
3． Higher lifting capacity with four connectedbar mechanism.
4． Flange telescopic boom coupling technology.
5． Self-design & developed slewing machinewith greater drive force can meet varied requirements of working situation.
6． The more symmetrical center design of hexagonboom make it has bigger anti-bending capacity.
7． Float three-point bridge structure design canlower the accessional stress on the chassis frame when traveling.

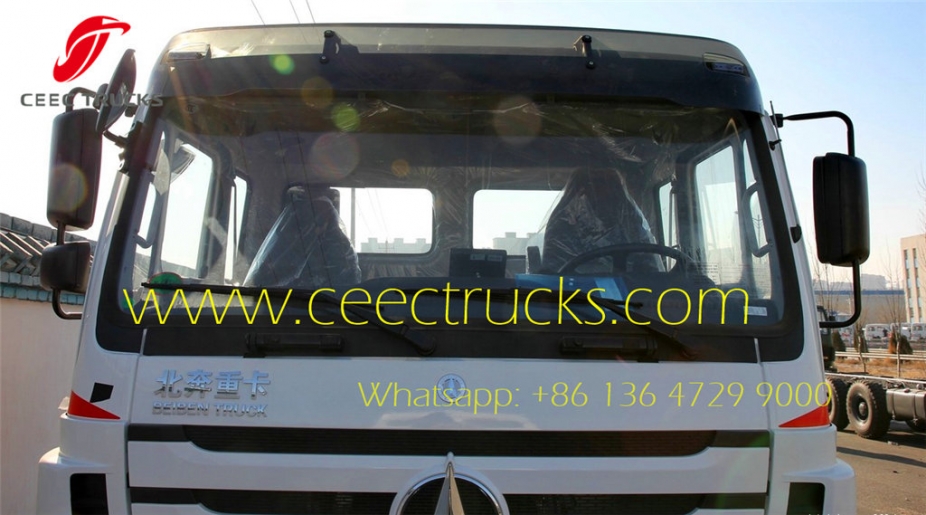

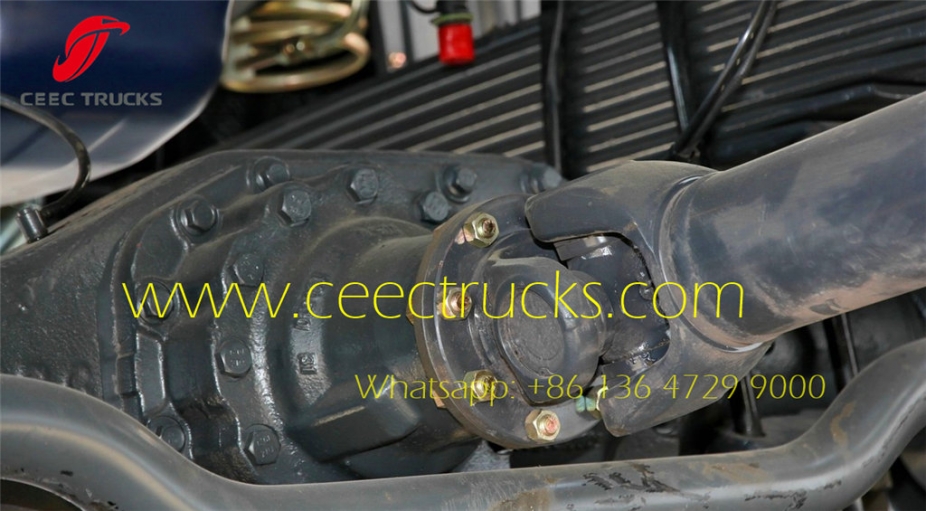

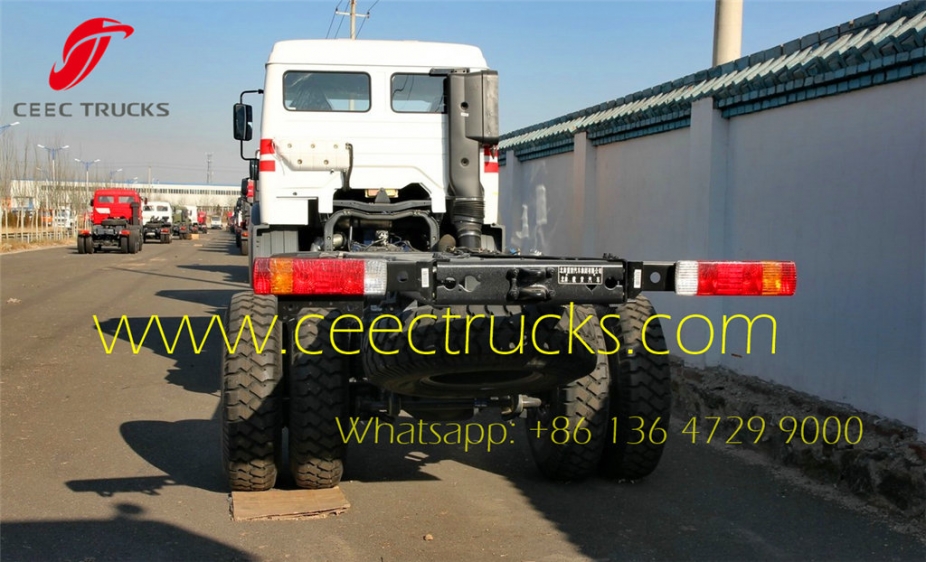

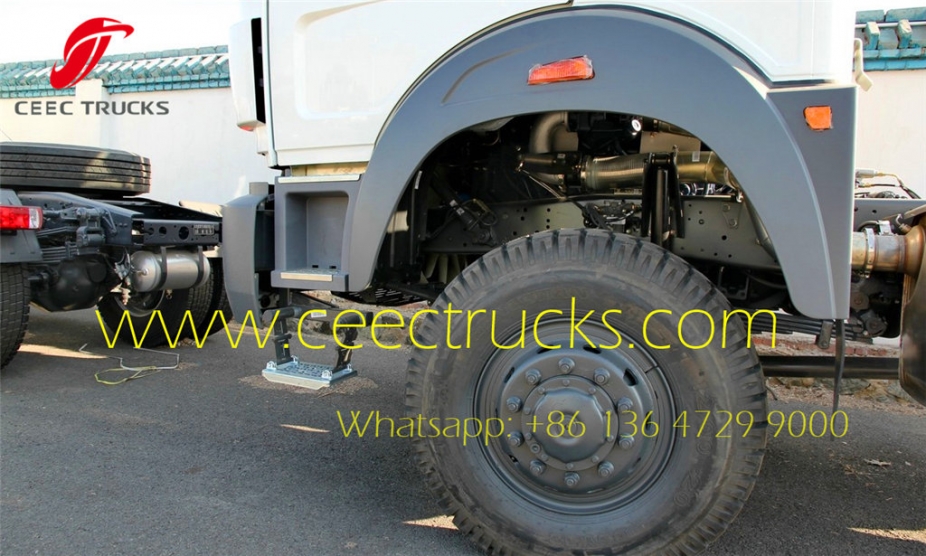

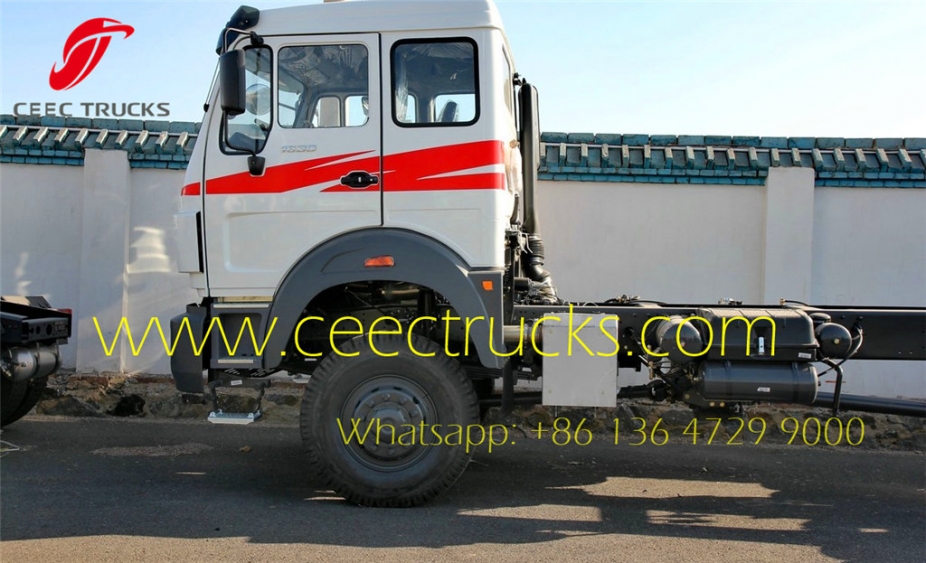

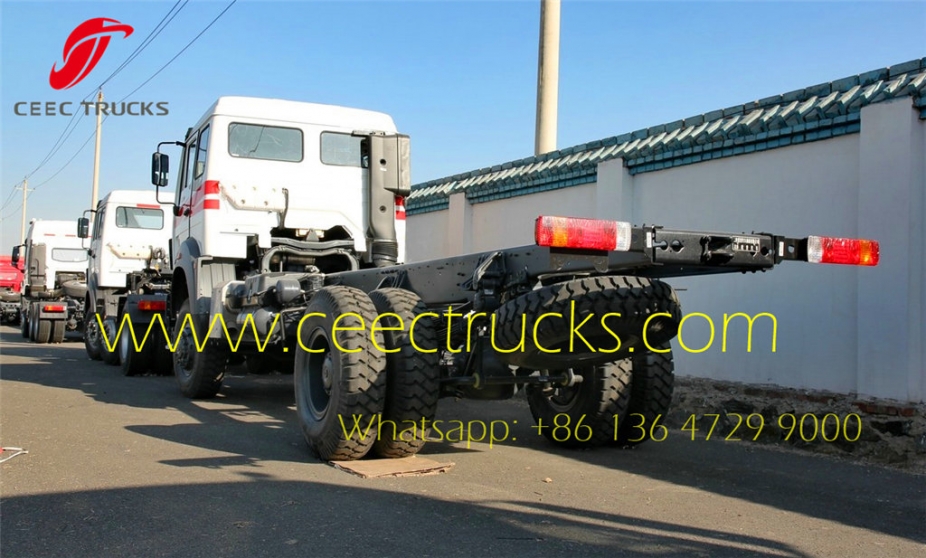

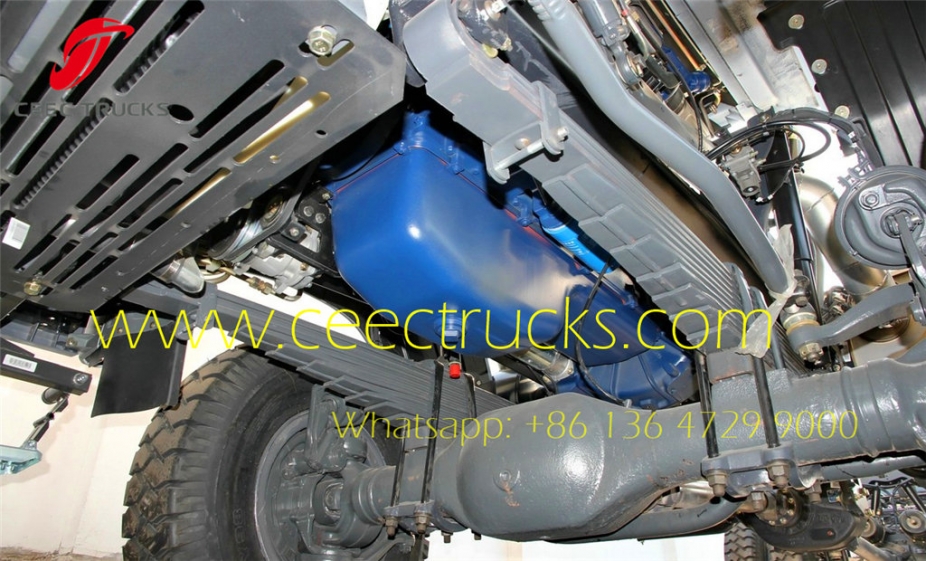

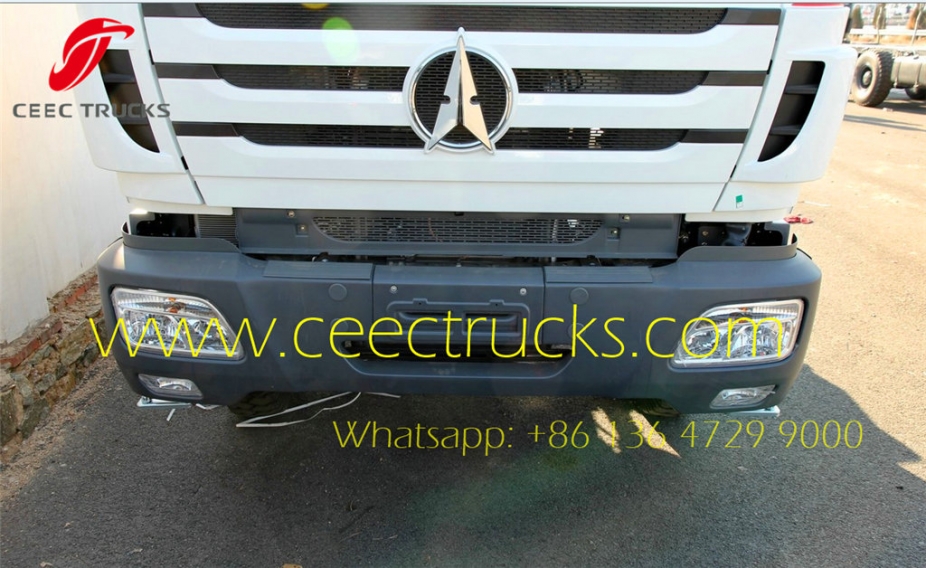

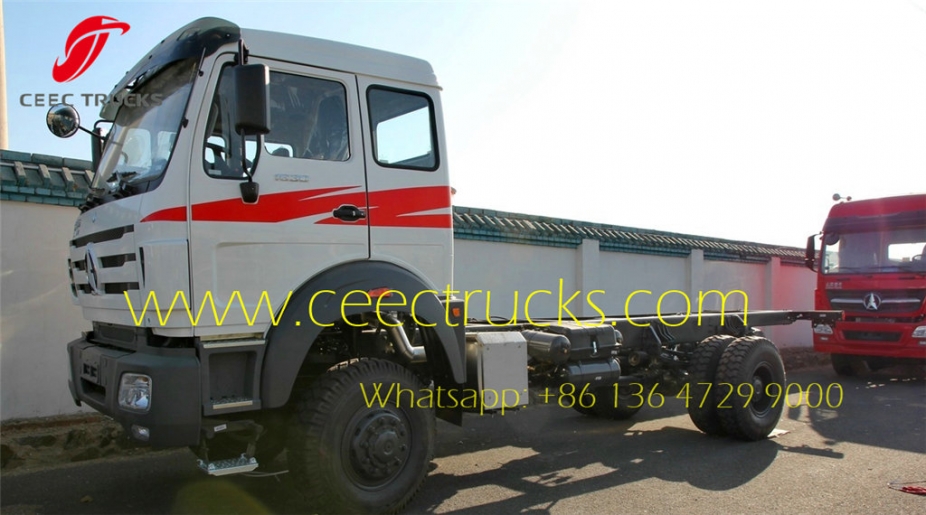

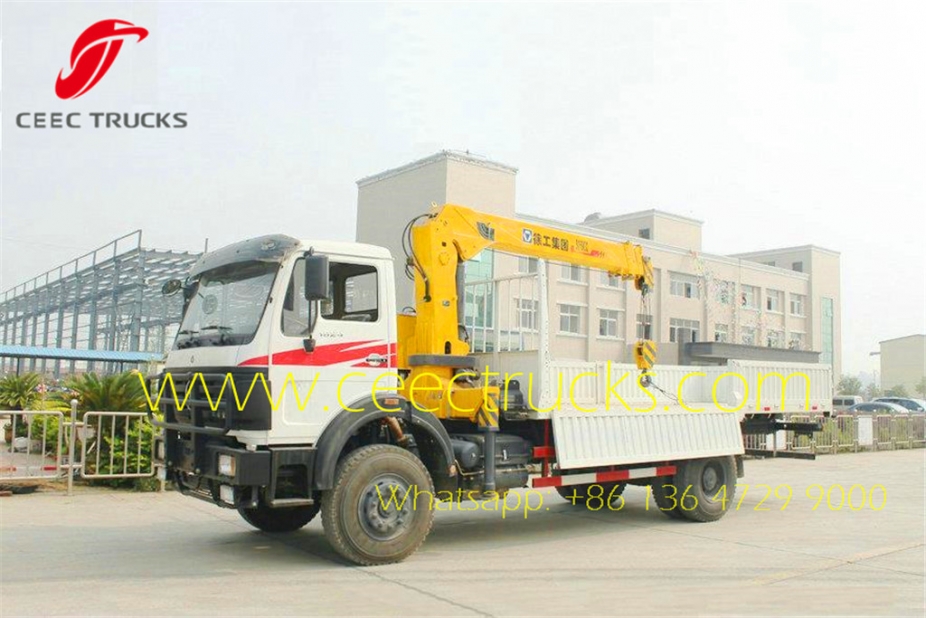

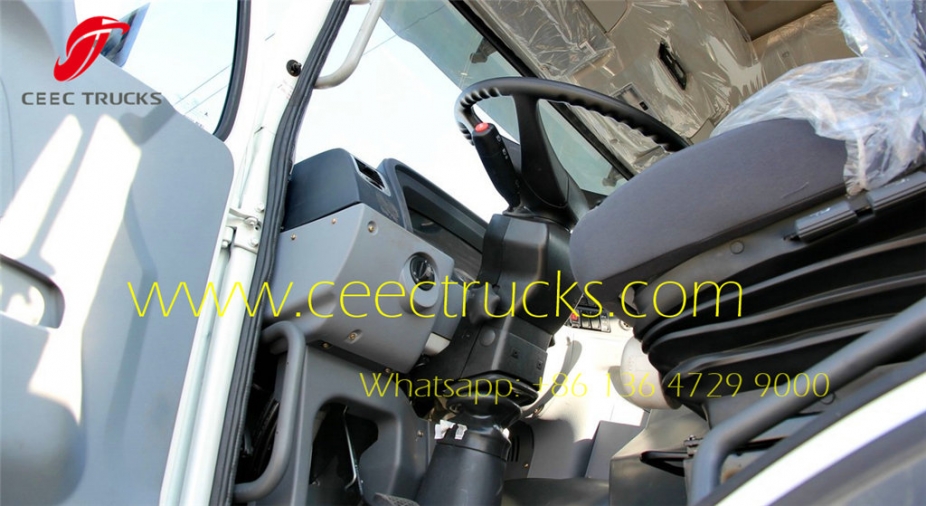

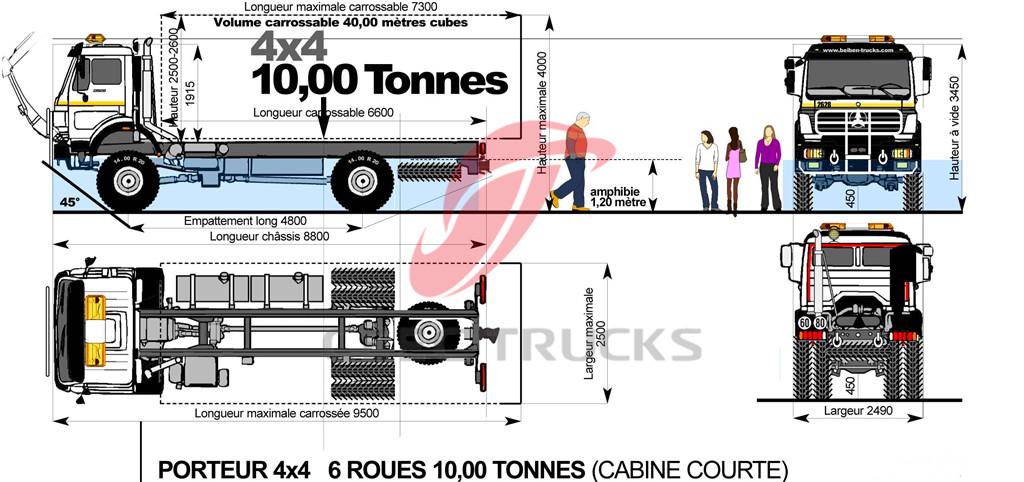

Beiben 6 wheel offroad mounted crane cargo truck chassis display:
Similar Key Words: Straight Arm Isuzu 5T Truck Mounted Crane, ISUZU 5000kg Boom Truck Mounted Crane, 5t Crane ISUZU Truck Mounted Crane, 5t ISUZU crane mounted cargo truck, Myanmar isuzu truck mounted crane
| Beiben 4*4 truck XCMG 5 Ton mounted crane | |
| Types of drive | Left hand drive (LHD ) |
| Truck model number | 1626S |
| Dimension (mm) | 8665*2495*3145 |
| Curb weight (kgs) | 7440 |
| Drive wheel | 4×4 |
| Engine model | WD10.300 |
| Horsepower(hp) | 300 |
| Bore*stroke (MM) | 126*155 |
| Displacement (L) | 9.726 |
| Rated speed (R/min) | 2200 |
| Max torque (Nm) | 1160 |
| Max Torque speed( R/min) | 1200-1600 |
| Lowest fuel consumption (G/kw.h) | < 198 |
| Net weight (KG) | 870 |
| Meridian tire | 12.00-20 |
| Number of tires | 6 + 1(spare wheel) |
| Saddle types | None |
| Transmission types : | RT11509C |
| Steering mechanism: | TAS85 |
| Wheelbase (mm) | 4800 |
| Cab style | Long cabin, Benz technology ,without bed |
| Air-condition | With air-condition |
| Cab body style | The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology. |
| Steering system | High safe and reliable, and flexible, ZF8098 |
| Brake system | Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB |
| Electric system: | Stronger load ability, high reliability and easy maintenance |
| Truck frame style | Fish maw shape, inequilaterally section, equal intensity, Benz technology |
| Front axle | Benz 7.0T Transaxle |

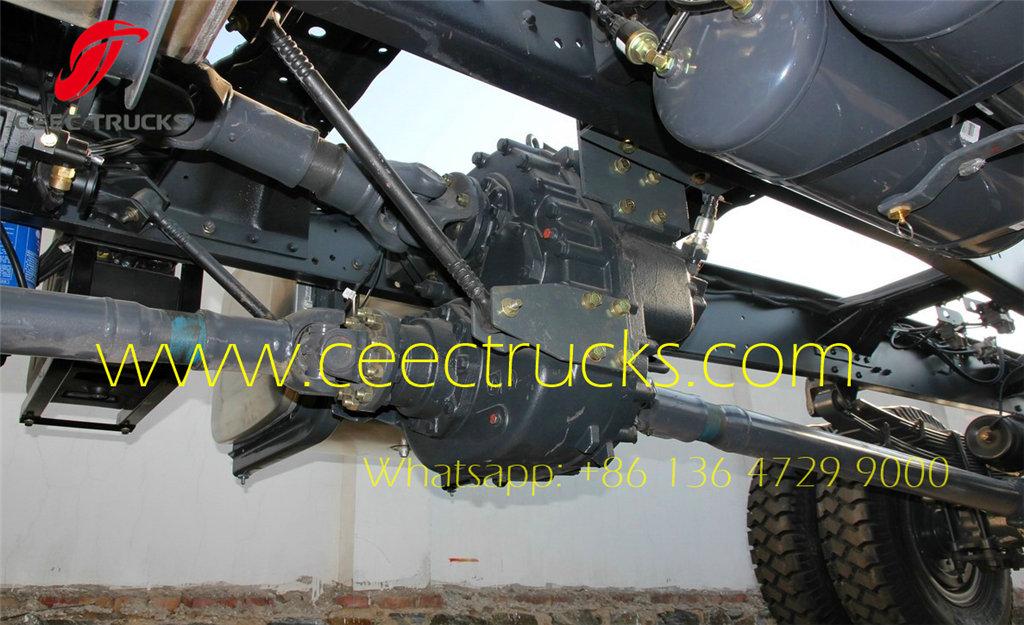

| Rear axle | Benz Technology, double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) Ratio=5.263 |
| Electric system: | Stronger load ability, high reliability and easy maintenance,24 V |
| Emission standard | Euro 2 & EURO 3 |
| Fuel tank capacity (L) | 400 |
| Optional equipment | Saddle, upper berth, ABS , squareness silencer. |

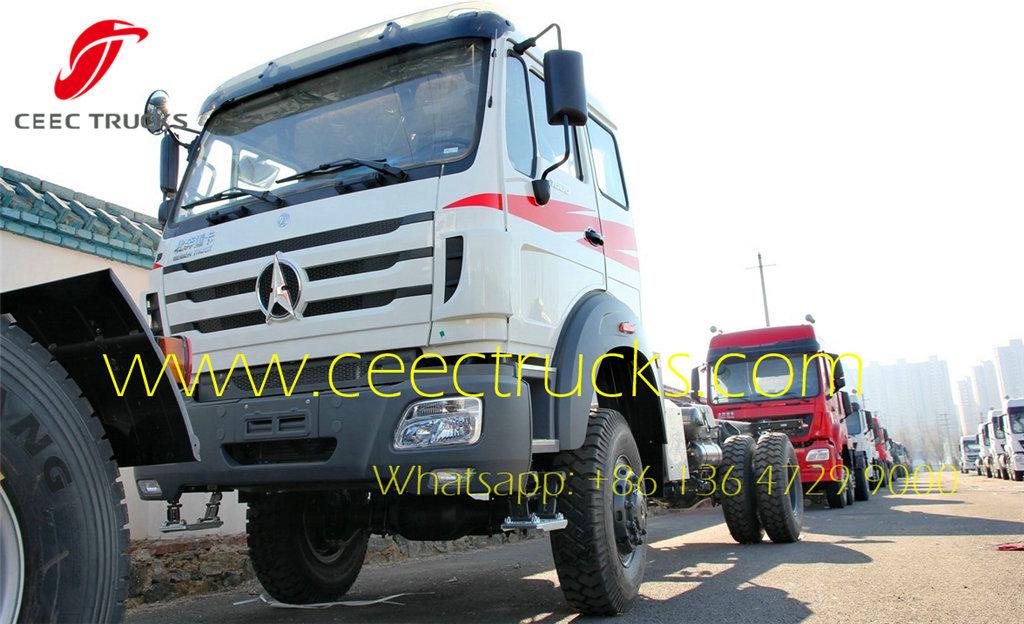

Other beiben trucks display
★ Beiben military 4*4 chassis, equipped WP10.300 engine, with 300 ps, super powerful
★ FAST brand 9-shift manual gearbox, mechanical, 9 forward & 1 reverse
★ Expert for producing Beiben Truck Mounted Crane over 10 years with good reputation
★ Telescopic boom crane and Knuckle boom crane: XCMG, PALFINGER, UNIC, HIAB.
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for isuzu boom crane trucks

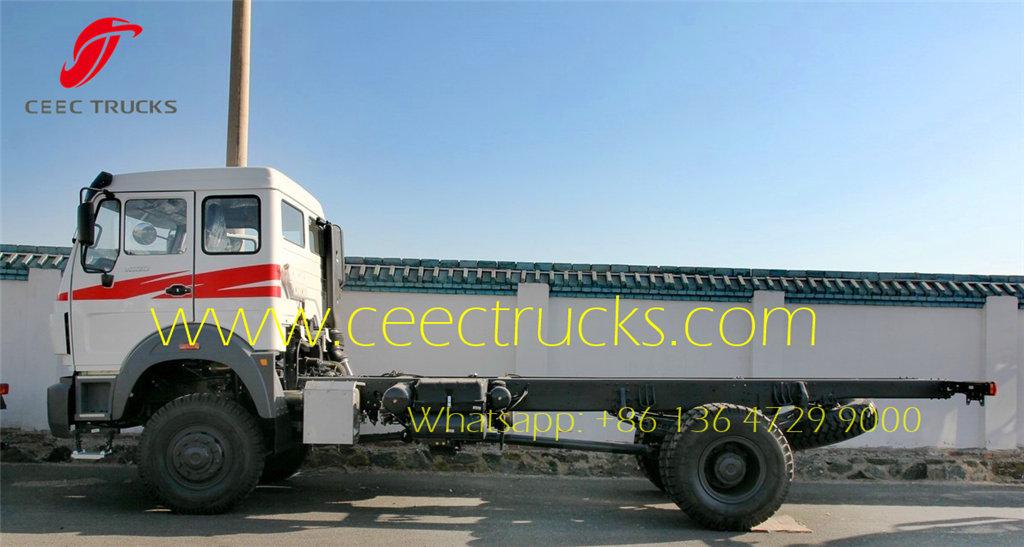

Authorized Beiben 4*4 military truck and beiben 6*6 offroad trucks supplier, we CEEC export Beiben military 5T mounted crane cargo truck to Asia, Africa and South America. Below show totally 20 units beiben 4*4 tractor truck, Beiben 4*4 chassis, which can be used to refit north benz 5T truck mounted crane, beiben military cargo truck, beiben offroad troop crawler, etc.

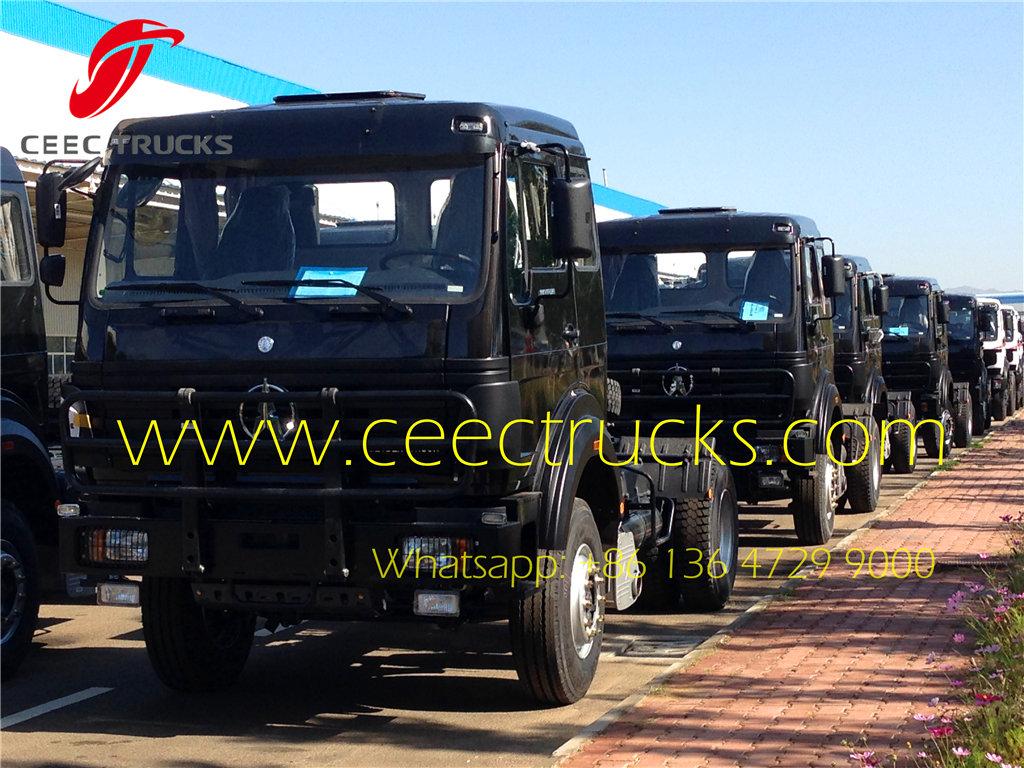

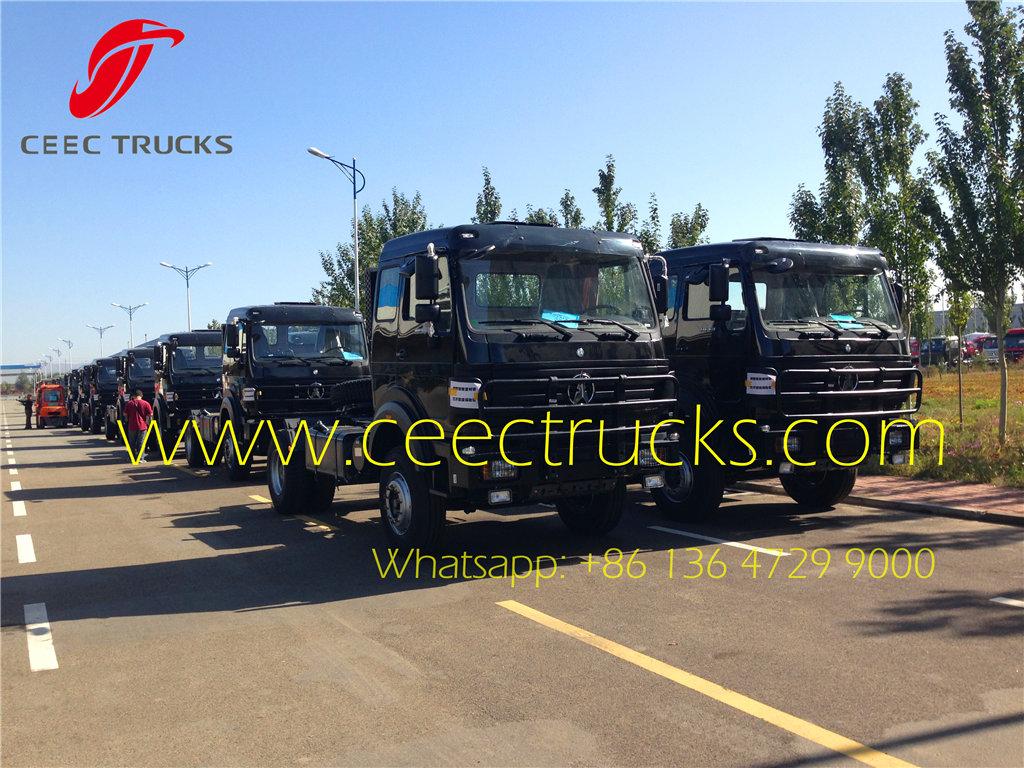

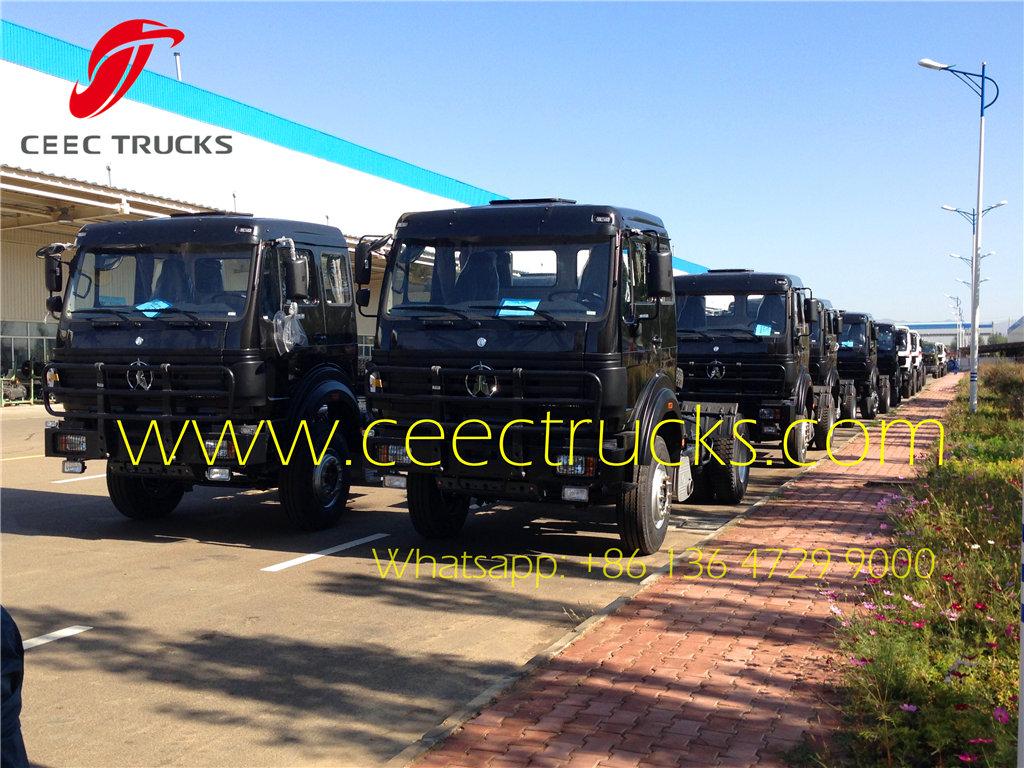

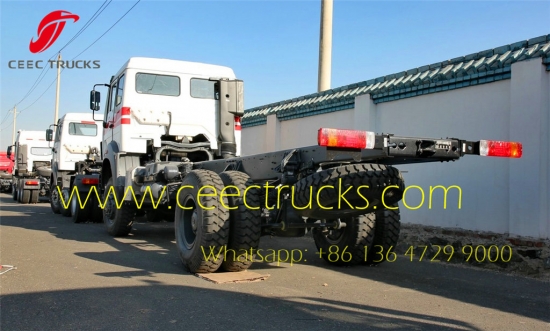

(Beiben 4*4 military truck in factory for quick delivery)

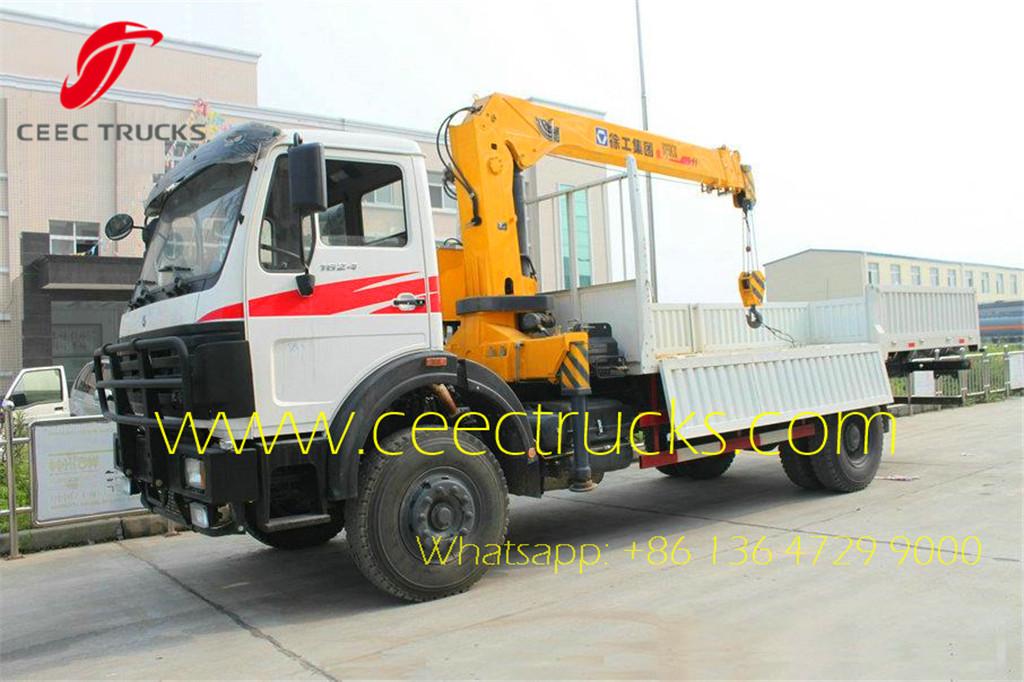

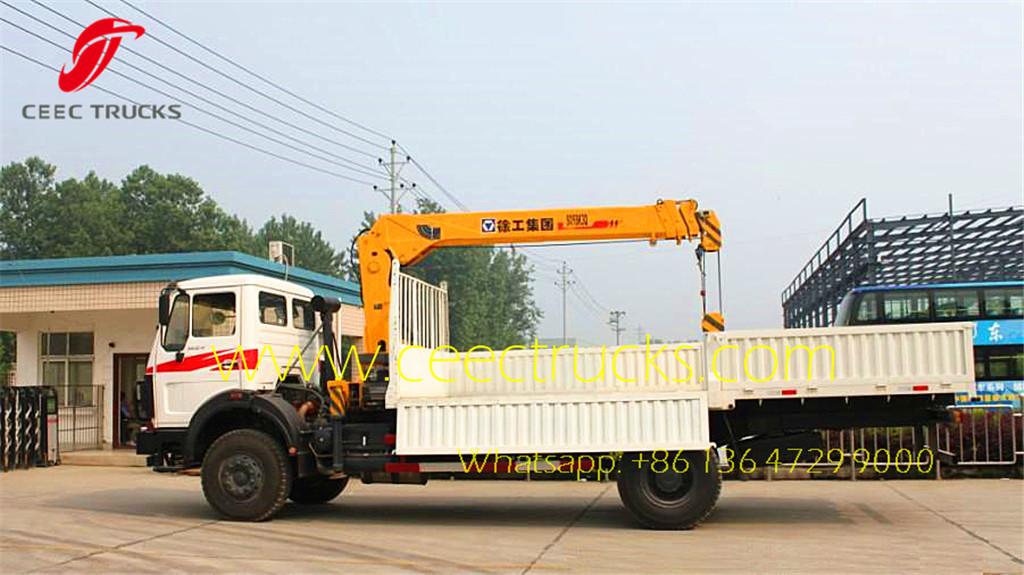

(North benz 4*4 offroad truck ready shipping to Congo for military project)
