Applications:

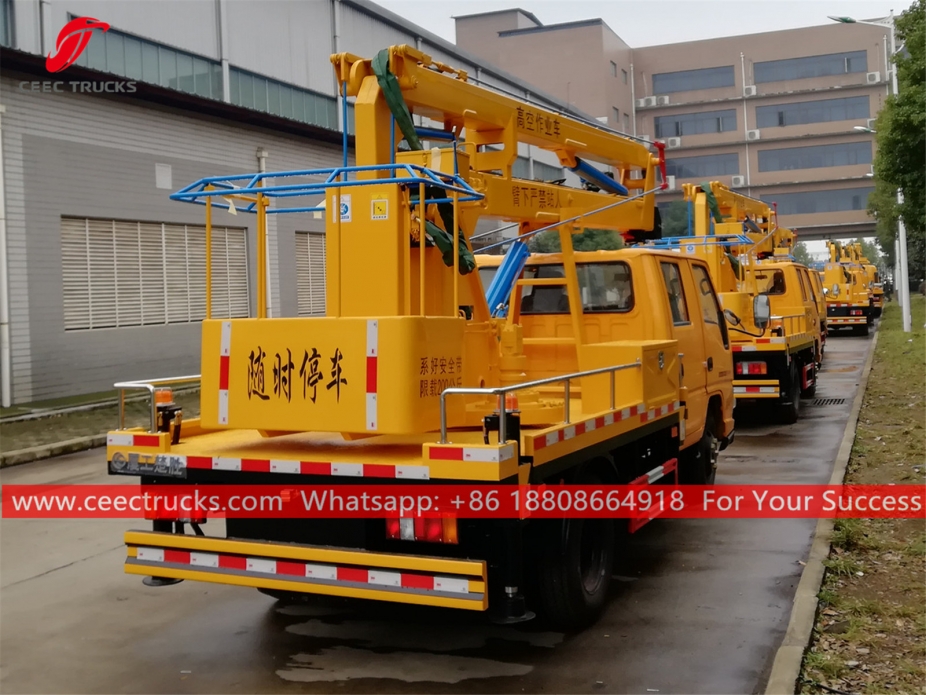

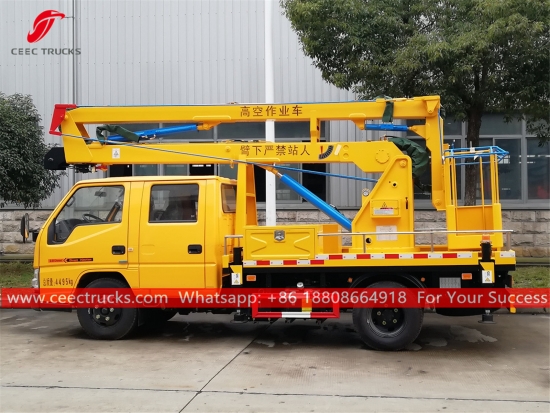

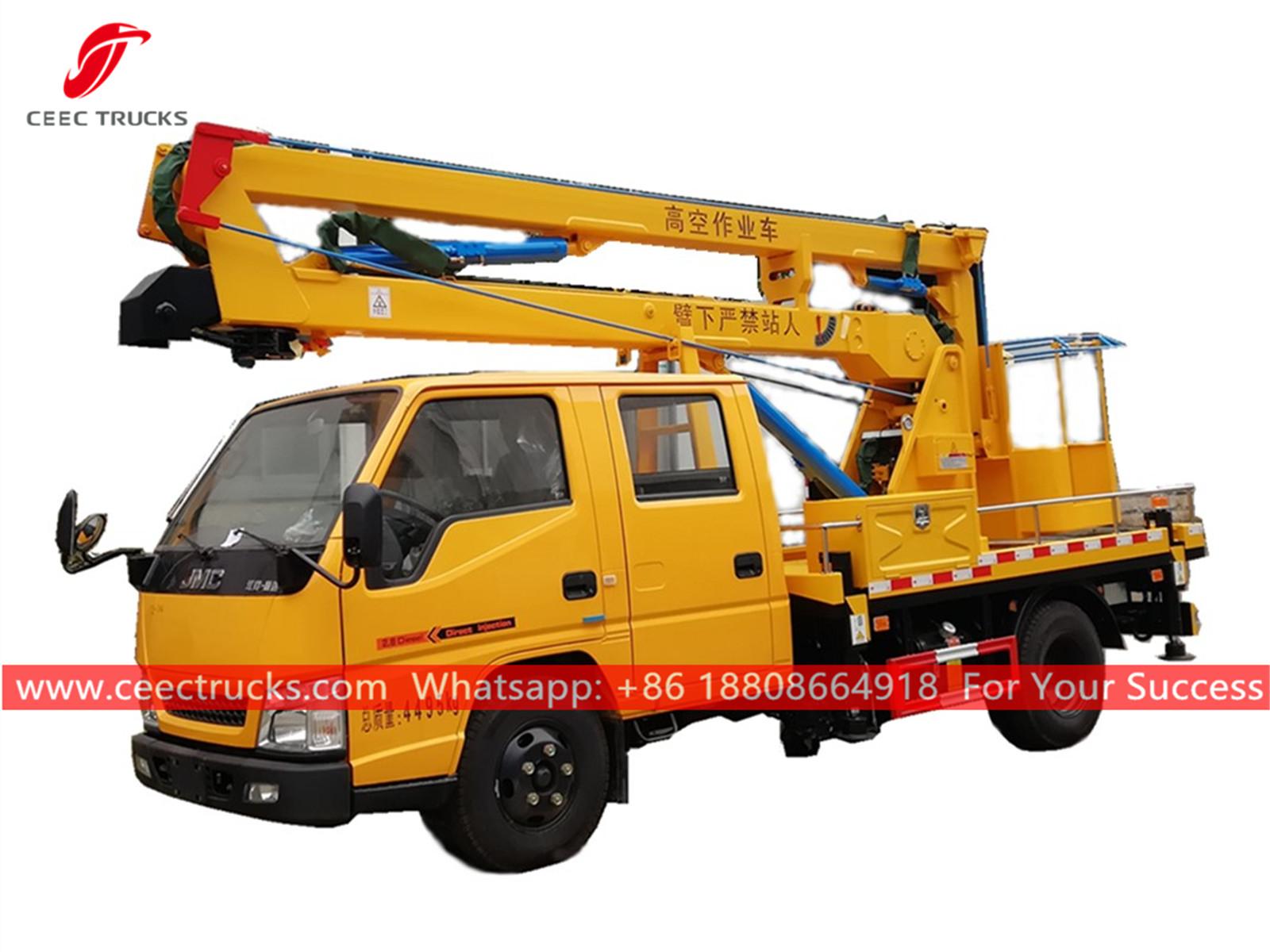

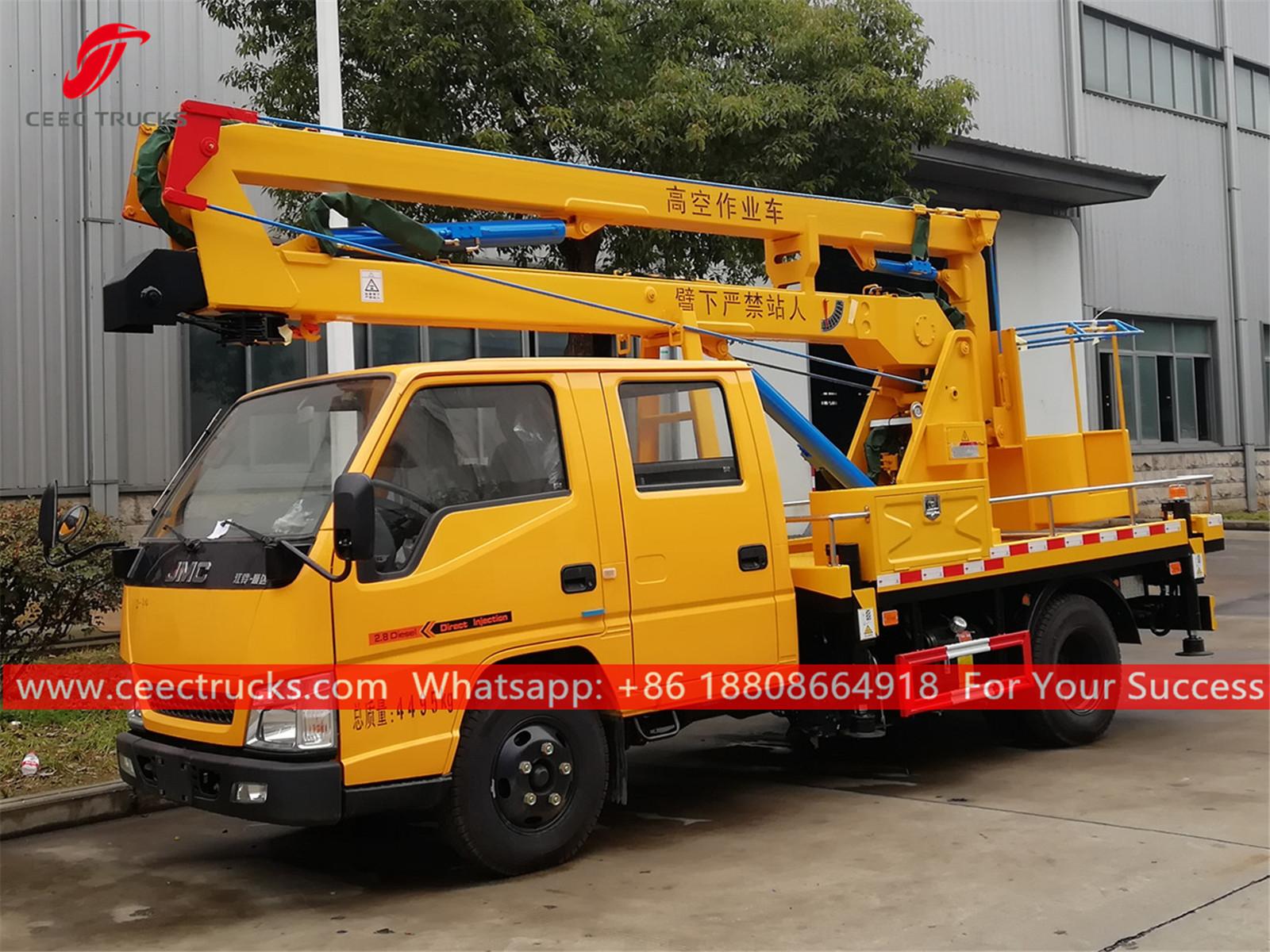

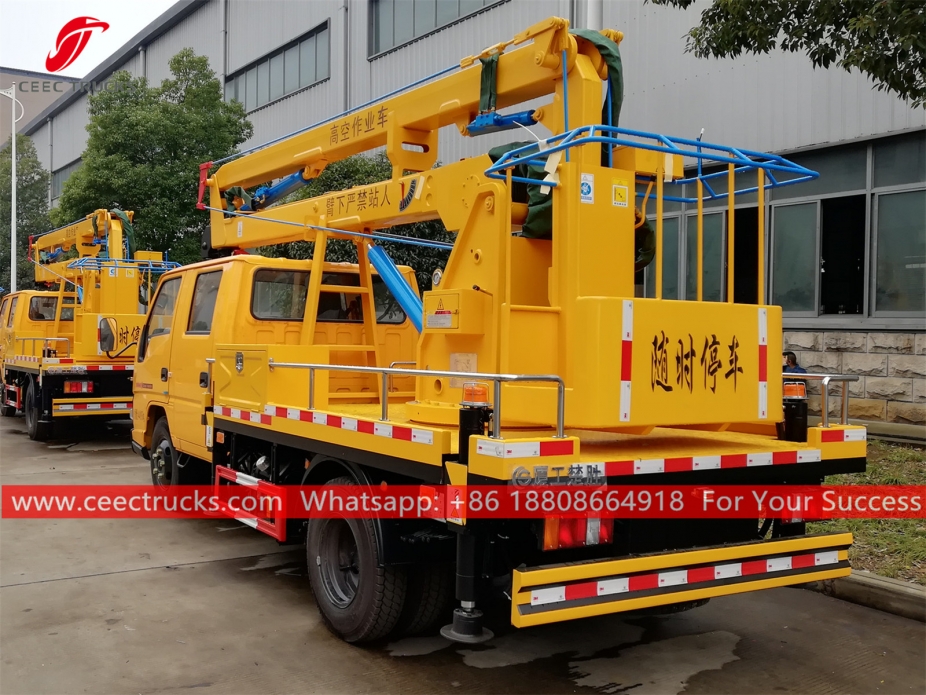

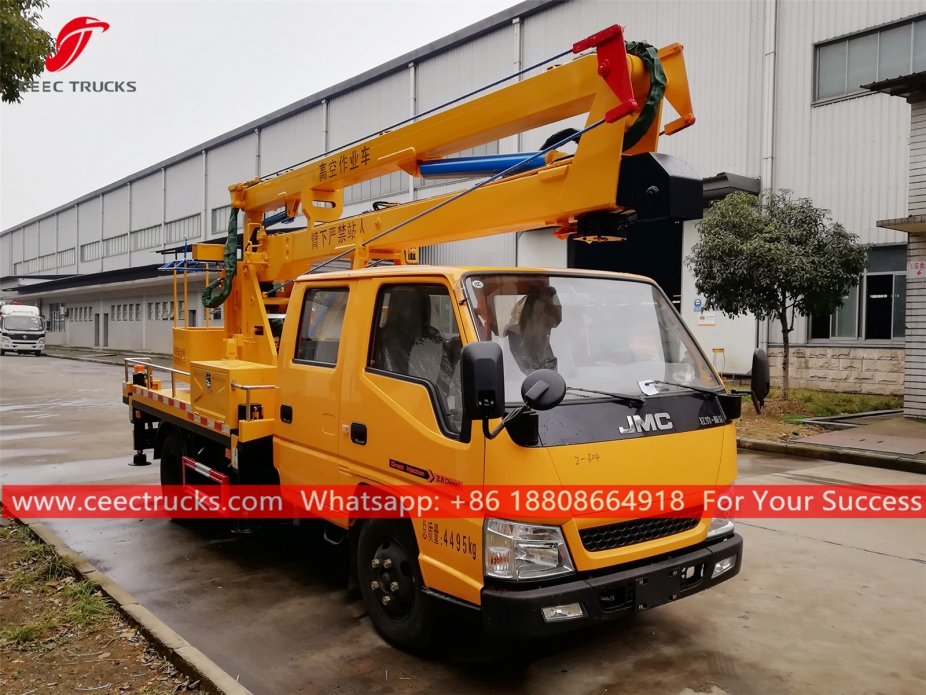

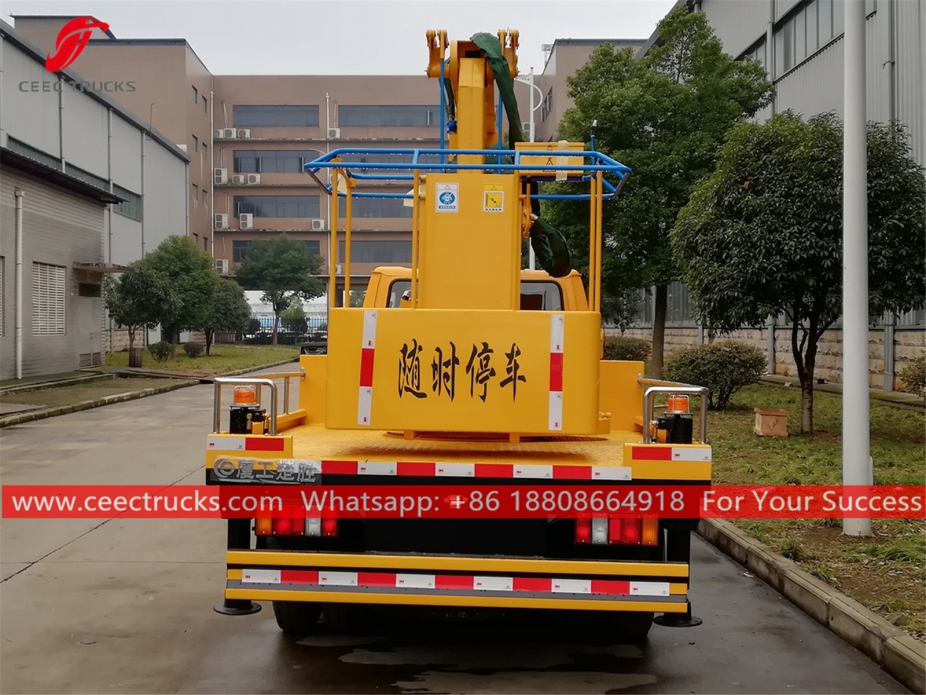

Aerial Platform Bucket Truck JMC (also called Bucket crane, boom lift, high platform truck, mobile man lift vehicle, man lift trucks) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.
Key Features:
---- JMC chassis, perfect performance
---- JMC engine, super powerful, no overhaul within 100,000 km.
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

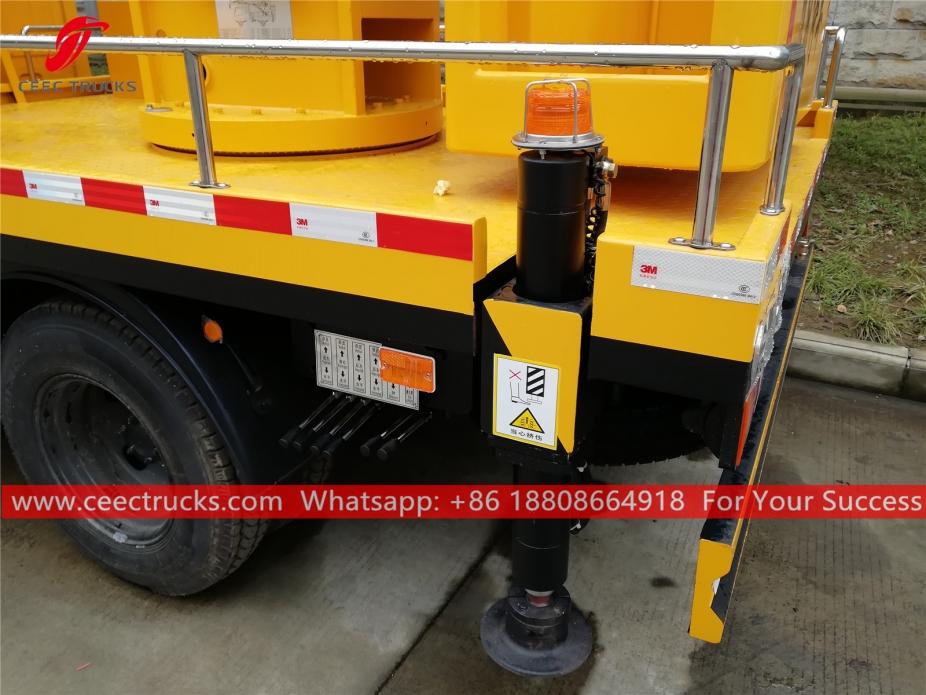

---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Specifications:
| Aerial Platform Truck JMC (16M) | ||
| General | Vehicle Brand | CEEC TRUCKS |
| Chassis Brand | JMC | |
| Overall Dimension | 5995 x 1980 x 2990 mm | |
| GVW / Kerb Weight | 4,495 kg / 4,170 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | JMC engine | |
| Power | 115Ps (85 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 or 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 16 m | |

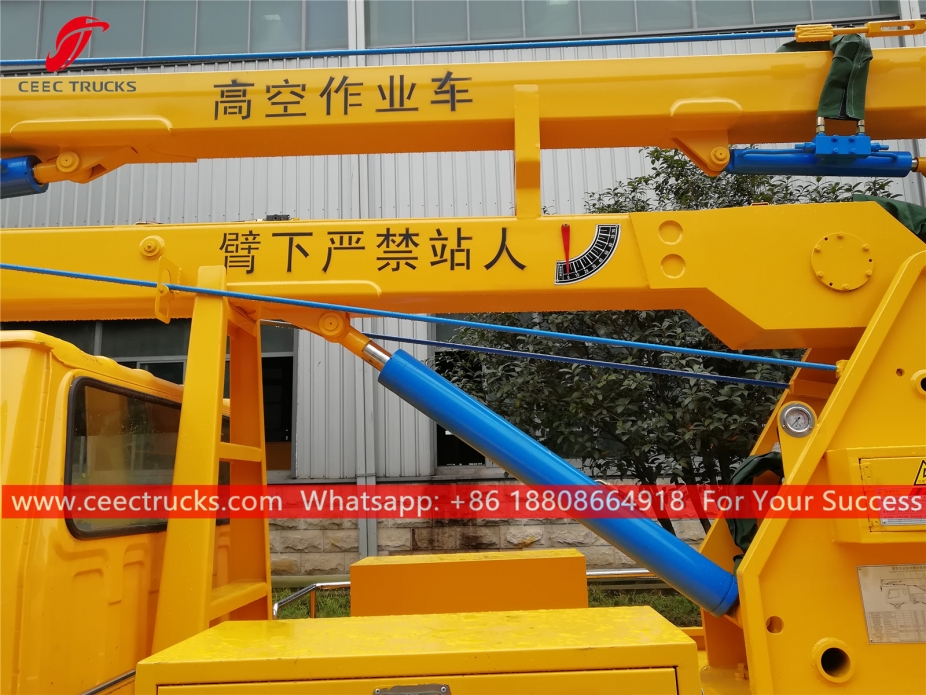

| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |
| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. | |
| Control | Control both on the ground and remote control in cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
★ JMC engine, super powerful
★ 12 months fast moving spare parts for FREE
★ Authorized JMC aerial platform trucks exporter
★ Training service for JMC high platform trucks
CEEC TRUCKS is a leading exporter of JMC Aerial Platform trucks in China. We possess over 10-year export experience of JMC high platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our aerial platform trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
